Custom synthesized Phos-tag™ compounds

We synthesize special Phos-tag™ compounds.

Phos-tag™ is a functional molecule that traps every phosphoprotein, including Ser, Thr, and Tyr. We have a series of products available for the separation, detection, analysis, and purification of phosphoprotein.

Phos-tag SDS-PAGE Data Collection
Phos-tag™ was developed at the Functional Molecular Science Laboratory of the Graduate School of Biomedical and Health Sciences at the Hiroshima University.

List of customized Phos-tag™ products

We offer special sales of the customized Phos-tag™ products in stock.

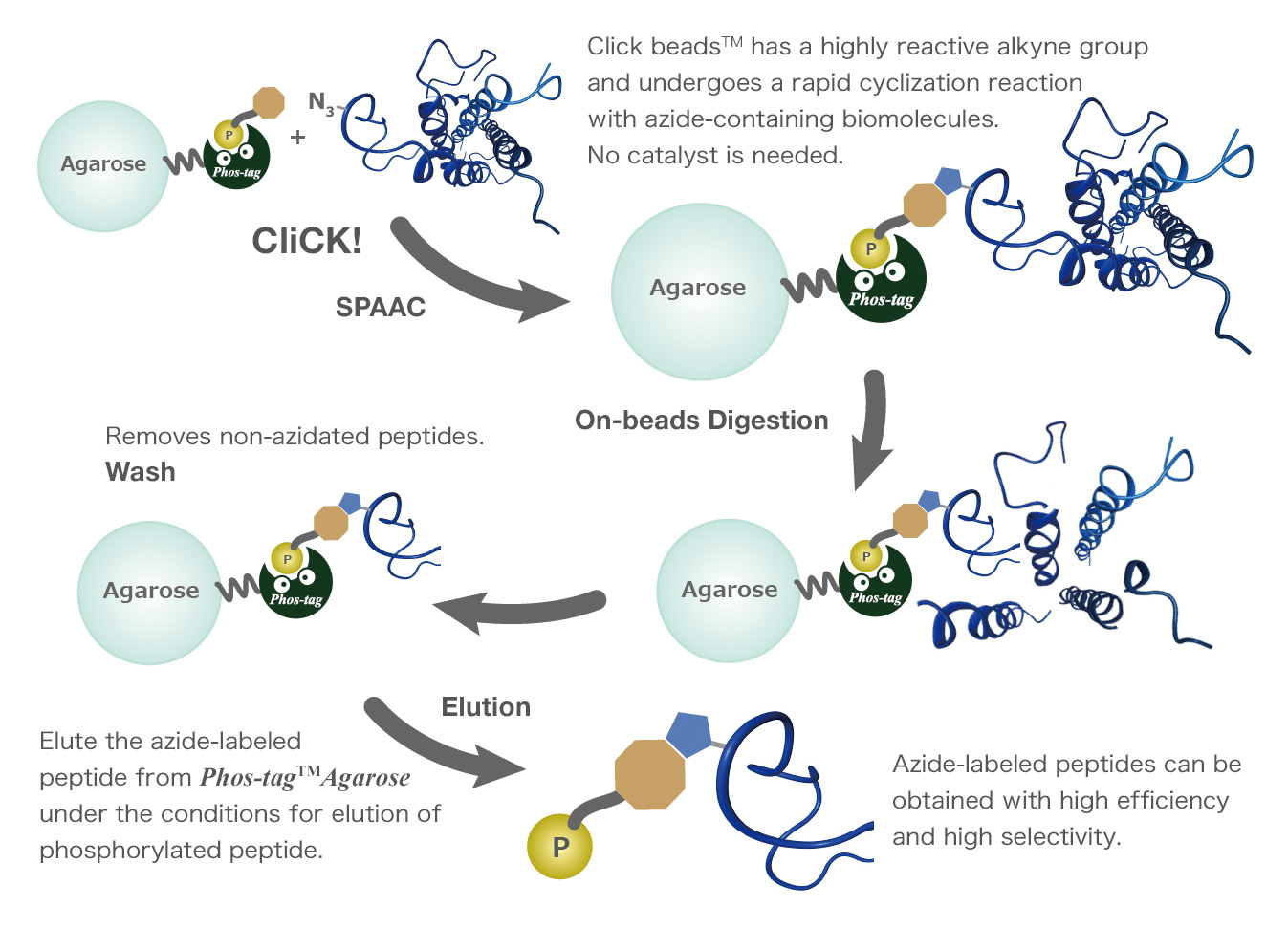

Phos-tag™ Click beads™ KIT
Phos-tag™ Click Tip™ KIT

This kit provides a rapid, sensitive, and non-toxic method for the enrichment of azide-containing molecules.

Simple process using Phos-tag™ Agarose
Small starting amounts(100µg~)
No additional reagents during SPAAC(or SPIEDAC)reaction
Direct Detection of azide-labeled peputides

Phos-tag™ Click beads™ and Phos-tag™ Click Tip™ was jointly developed with the Advanced Medical Research Center of Yokohama City University and NARD Inst., Ltd.

Azido-labeled Protein Purification / Concentration Kit

Phos-tag™ Click beads™ Kit 01

nCB-K01
pBCN Ligand 1mg(3µmol)
Phos-tag™ Agarose 90µL-gel(180µL slurry)

32,000 JPY
(35,200 JPY include consumption tax)

Phos-tag™ Click Tip™ Kit 02

nCT-K02
pBCN Ligand 1mg(3µmol)
Phos-tag™ Agarose 90µL-gel(180µL slurry)
C18 pipette tip 6 pieces
32,600 JPY
(35,860 JPY include consumption tax)

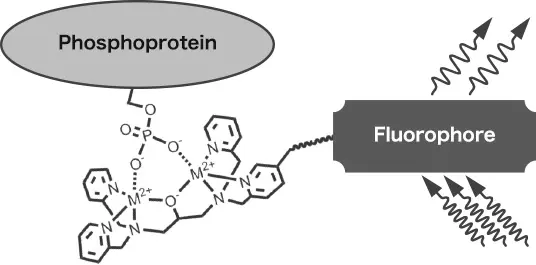

Phos-tag™ fluorescent stain gel

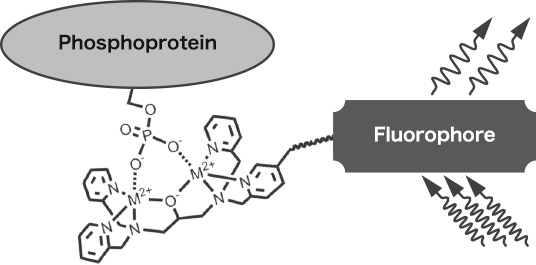

This is a reagent for phosphorylation fluorescent imaging analysis that allows for staining at physiological pH. The reagent selectively binds with the pSer, pThr, pTyr, pHis, and pAsp residues. The staining process requires approximately 2 hours. Radioactive materials, chemical labels, or antibodies are not required. Procedures lower in the procedural stream, such as CBB staining or MS analyses, can be applied.
Visualization is also possible by combining Phos-tag™ SDS–PAGE and conventional SDS–PAGE.

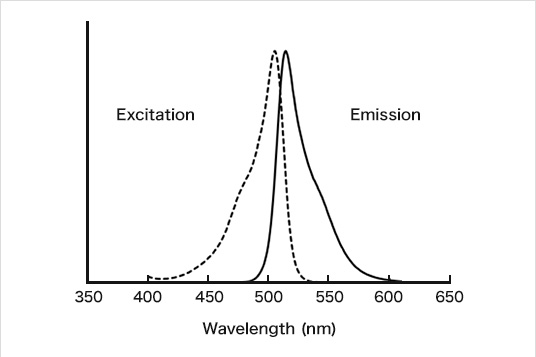

Phos-tag™ Yellow

nPGS-Y01
Ex/Em=505nm/514nm
0.2mg  20,000 JPY
(22,000 JPY include consumption tax)

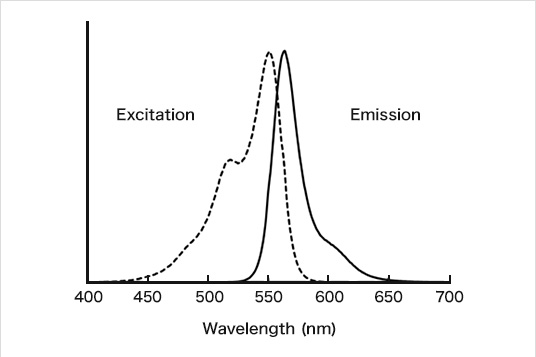

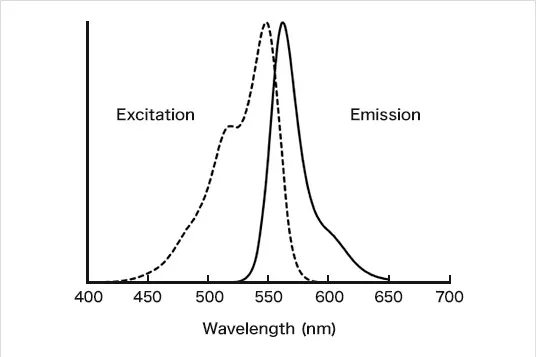

Phos-tag™ Magenta

nPGS-M01
Ex/Em=547nm/561nm
0.2mg  20,000 JPY
(22,000 JPY include consumption tax)

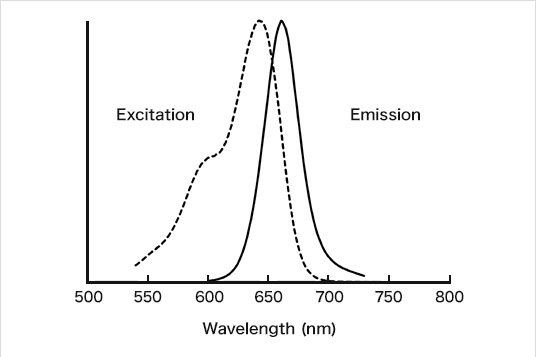

Phos-tag™ Cyan

nPGS-C01
Ex/Em=643nm/661nm
0.2mg  20,000 JPY
(22,000 JPY include consumption tax)

Phos-tag™ Aqua

nPGS-A01
Ex/Em=551nm/564nm
0.2mg  20,000 JPY
(22,000 JPY include consumption tax)

Mixed reagents for Phos-tag™ Common Solution 5x

nPGS-MR1
A stain solution/washing solution reagent is available for Phos-tag™ fluorescent stain gels. A common solution of 5× concentration is made by diluting with purified water to 500 ml.
5,000 JPY
(5,500 JPY include consumption tax)

Any product contains reagents that can be used for staining a mini-gel at least 20 times.

Phos-tag™ for condensing phosphorylated peptide

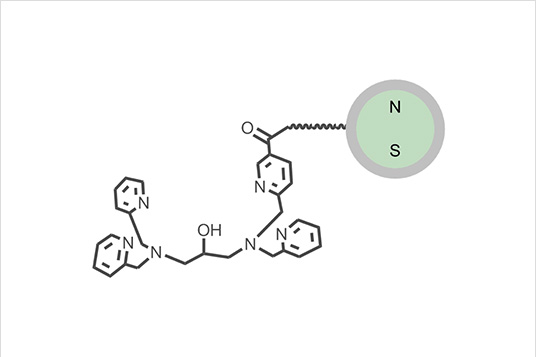

Phos-tag™ MG-Bead

Phos-tag™ ligand carrying no magnetic beads, allowing high throughput for experiments.
Binding volume: 1µmol/mL-gel

nMG-303
100µL-gel  99,000 JPY
(108,900 JPY include consumption tax)

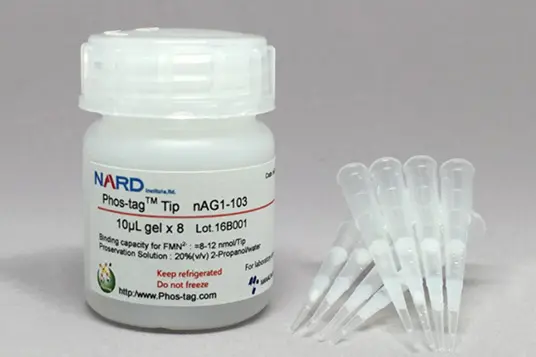

Phos-tag™ Tip

Product grade is optimized for the use of mass analysis.

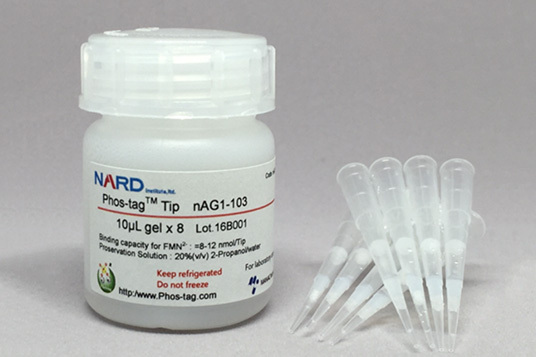

nAG1-103 [High-sensitive MS analysis]
10µL-gel x8  18,000 JPY
(19,800 JPY include consumption tax)

Production-to-order products

We synthesize your requested Phos-tag™ tip on a made-to-order basis.

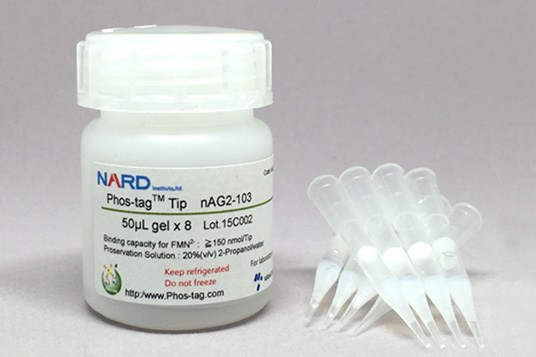

nAG2-103 [Large volume]
50µL-gel x8  64,000 JPY
(70,400 JPY include consumption tax)

Phos-tag™ labeled with a dye

This is a dye-labeled Phos-tag™ ligand.

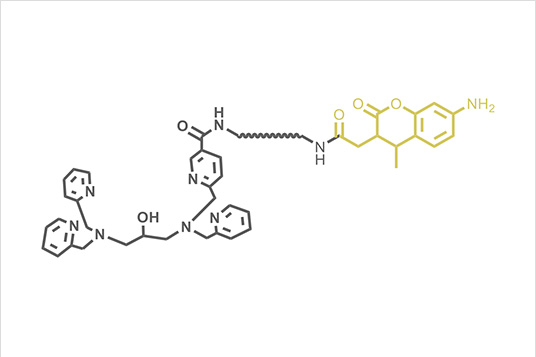

Phos-tag™ Coumarin

nFLC-301
10mg  49,000 JPY
(53,900 JPY include consumption tax)

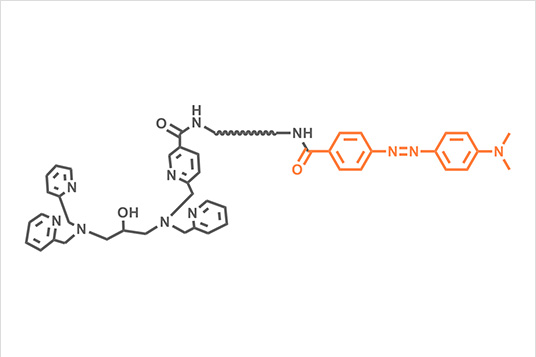

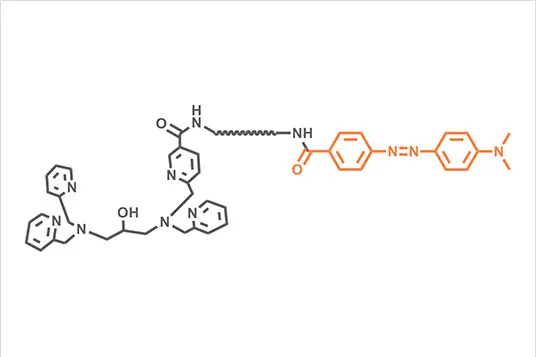

Phos-tag™ Dabsyl

nFLD-303
10mg  49,000 JPY
(53,900 JPY include consumption tax)

Amino acid Phos-tag

Complex of Phos-tag™ and amino acid. The N-end is protected by Fmoc.

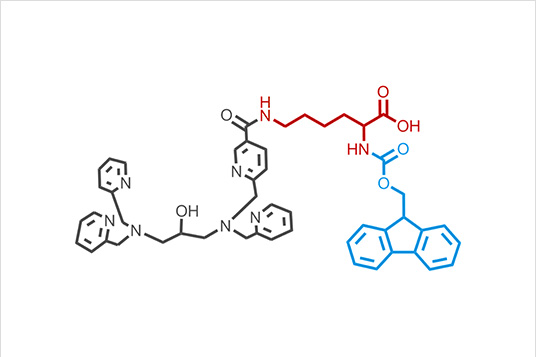

Phos-tag™ Lys

nAML-201
10mg  Pricing can be separately discussed

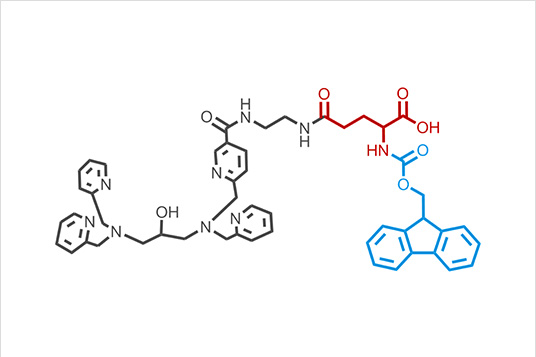

Phos-tag™ Glu
Production-to-order products

nAMG-202
10mg  Pricing can be separately discussed

References

“A Phos-tag™-based magnetic-bead mehthod for rapid and selective separation of phosphorylated biomolecules”
Journal of Chromatography B, 925, 86-94 (2013)
M. Tsunehiro, Y, Meki, K. Matsuoka, E. Kinoshita-Kikuta, E. Kinoshita, and T. Koike

“A Phos-tag™-based Fluorescence Quenching System for Activity Assay and Inhibitor Screening for Alkaline Phosphatase”
American Journal of Analytical Chemistry, 5, 796-804 (2014)
E. Kinoshita-Kikuta, H. Kurosaki, N. Kunisada, E. Kinoshita, and T. Koike

“A Phos-tag™-based fluorescence resonance energy transfer system for the analysis of the kinase reaction of a substrate peptide”
Analytical Methods, 3,1303-09 (2011)
M. Somura, K. Takiyama, E. Kinoshita-Kikuta, E. Kinoshita and T. Koike

“Identification of cAMP-dependent phosphorylated proteins involved in the formation of environment-resistant resting cysts by the terrestrial ciliate Colpoda cucullus”
Invertebrate Survival Journal, 11,213-218 (2014)
Y. Sogame, K. Kojima, T. Takeshita, E. Kinoshita and T. Matsuoka

Phos-tag™ beads as an immunoblotting enhancer for selective detection ofphosphoproteins in cell lysates” Analytical Biochemistry, 389,83-85 (2009) E. Kinoshita-Kikuta, E. Kinoshita, and T. Koike

In addition to available Phos-tag™ products,
we handle the synthesis of customized Phos-tag™ compounds required for your research.
Please let us know your request.
